Custom resources and CRDs

The app cannot know your CRDs in advance, so everything a custom resource row shows comes from the definition itself.

Finding the instances

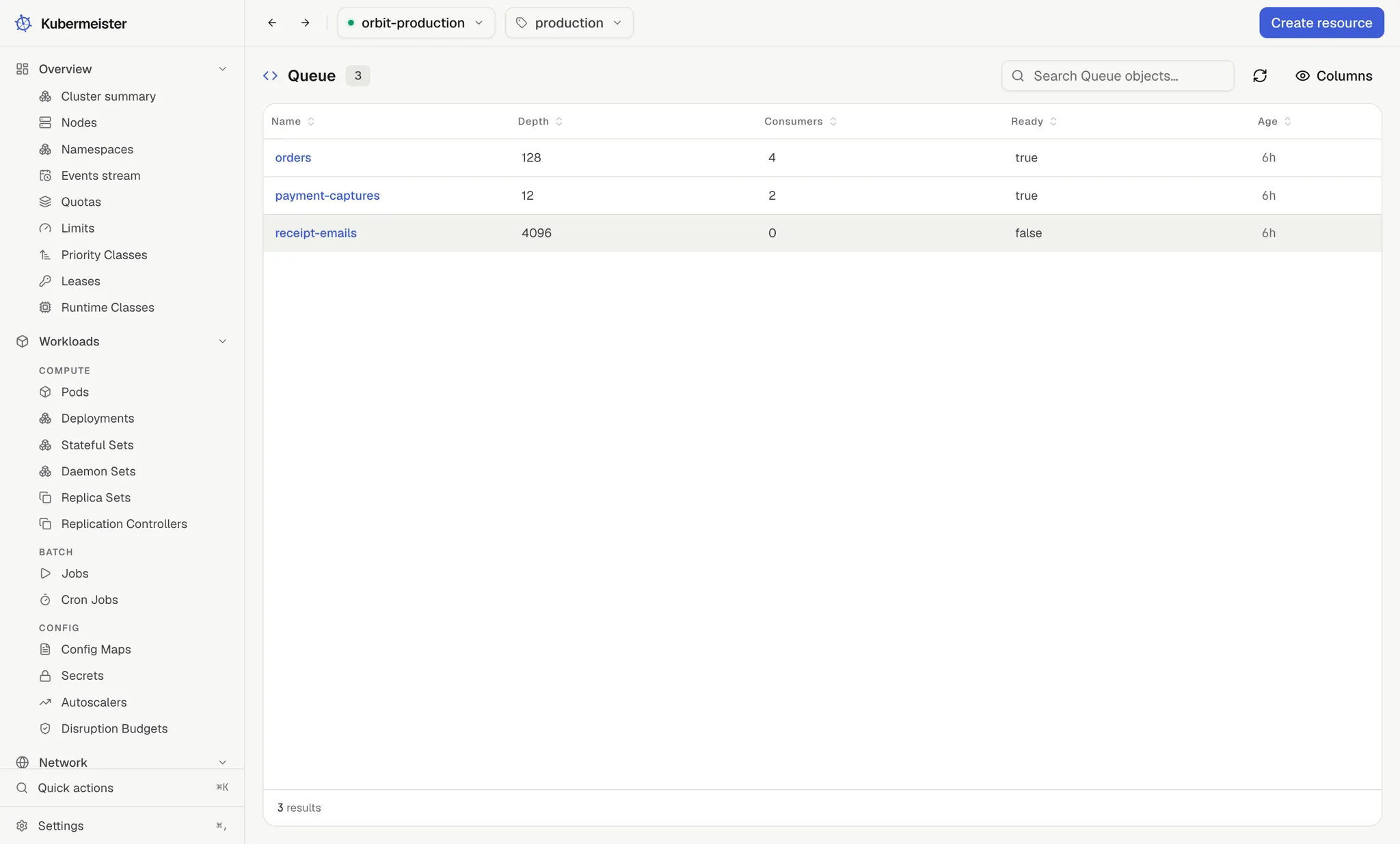

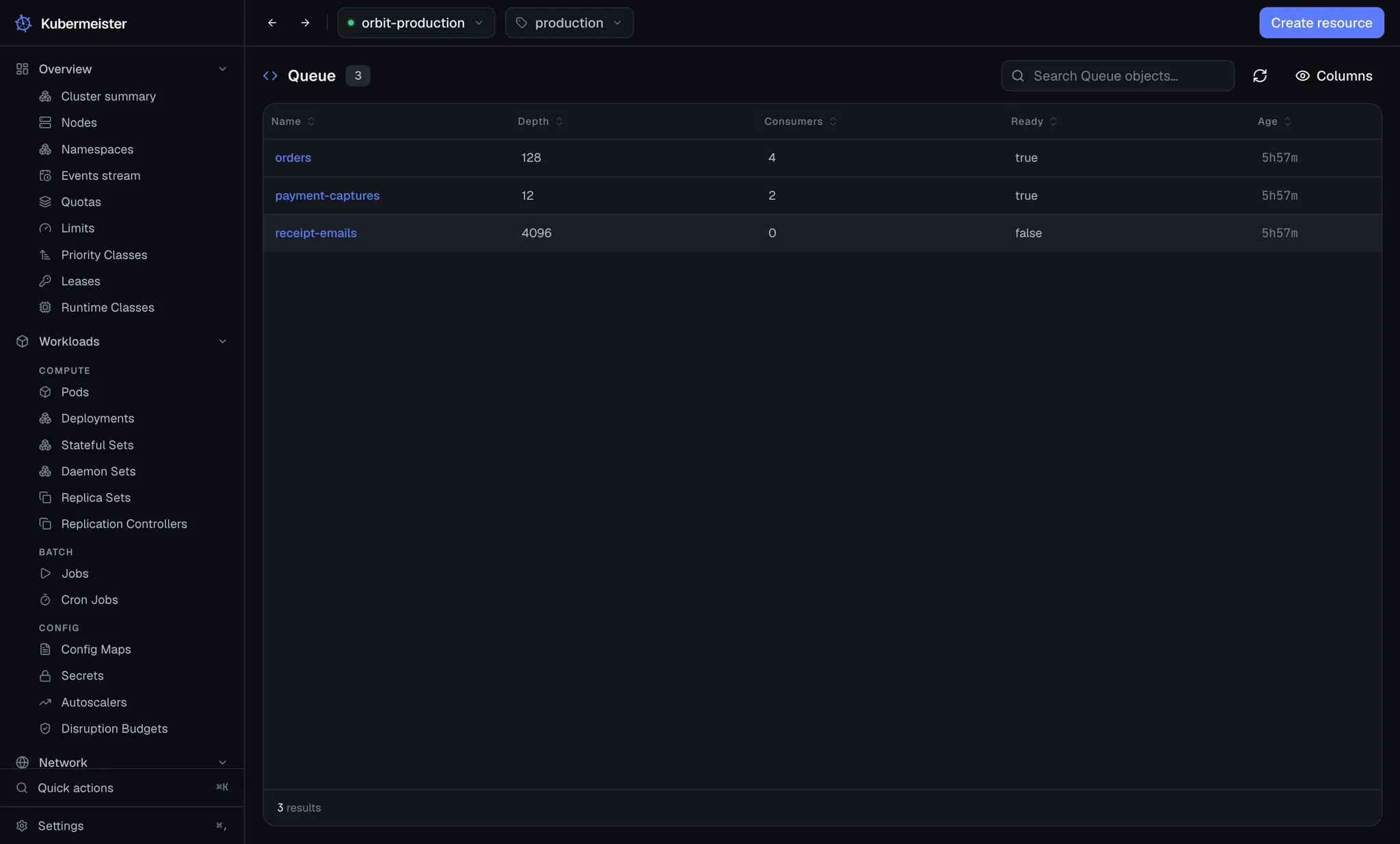

Add-ons › CRDs lists the definitions, with their group, version, scope and kind, and stays live through a watch. Open one and choose View instances in its header: that is the way to a kind’s instances, since no sidebar item can name kinds the app has never seen.

The instance list is titled with the definition’s kind. A namespaced kind follows the namespace selector like any other list; a cluster-scoped one ignores it. The list is polled at the refresh interval rather than watched, and it has no row selection.

What a row shows

For each definition, the app reads:

The columns between Name and Age come from the definition’s own additionalPrinterColumns.

• its storage version when that version is served, or else the first served version;
• its scope, namespaced or cluster-wide;
• its additionalPrinterColumns — the same columns kubectl get would print for that kind.

Those columns are then evaluated against each instance, between the name and the app’s own Age. A declared column on .metadata.creationTimestamp is dropped, since Age already says it. A date column is shown as an age, an object as JSON, and a missing value as “—”.

The JSONPath subset

Printer columns declare a JSONPath. The app evaluates the subset those columns actually use: dotted keys, ['quoted'] keys and [0] indexes.

Filters and wildcards are refused rather than half-evaluated, because a column that quietly produces a plausible wrong value is worse than an empty one. A refused path shows “—”, the same as a field the instance does not have.

An instance’s page

An instance’s detail page has an Overview with the same printer columns and its age, a Manifest tab, and Labels. It has no Events tab, no Object card and no Delete; the header carries Refresh and Edit.

Editing a custom resource rides the same replace call as every other kind, since that call derives the API path from the manifest’s own apiVersion and kind. The editor pins the kind the instance was read as, along with its name and namespace, and whether the kind is namespaced is asked of the API server’s discovery. See manifests.

The definitions themselves

A definition’s own page has the usual Overview, Events, Manifest and Labels. Deleting one asks you to type its name first, and warns that every custom resource of that type in the cluster is deleted with it.
