Cluster alerts

Alerts are derived from cluster state, cluster-wide, with rules the app decides rather than ones you tune. They are meant to answer “is anything obviously wrong” at a glance.

Where alerts show

Alerts appear in one place: the Alerts panel on Overview › Cluster summary, the screen the app opens on. A badge beside the title counts them, and the panel reads “No active alerts.” when there are none. Each alert has a title naming the object and a line of detail under it.

• The list is cluster-wide, whatever namespace the top bar is scoped to, so the summary means the same thing on every screen.
• Danger alerts come first, then warnings, and the panel shows at most 20. On a cluster with more, warnings are the first to be left out.
• It is re-read at the Live data refresh interval, and straight after a write that could change it, such as a cordon or a delete.
• Each source is best-effort: if your RBAC forbids reading Jobs, say, the other alerts still show.

The rules

Alert	Tone	Raised when
Pod pending: pod	warning	The pod’s phase is Pending, and it is not one of the two cases below.
CrashLoopBackOff: pod	danger	A Pending pod has a container waiting in CrashLoopBackOff; or the pod had a Warning BackOff event in the last 10 minutes whose message does not mention pulling an image.
Image pull failure: pod	danger	A Pending pod has a container waiting in ImagePullBackOff or ErrImagePull; or the pod had a Warning BackOff event in the last 10 minutes whose message mentions pulling an image.
Pod failed: pod	danger	The pod’s phase is Failed.
Node NotReady: node	danger	The node’s Ready condition is not True.
Node cordoned: node	warning	The node is ready but unschedulable (spec.unschedulable).
Job failed: job	danger	The Job has a Failed condition that is True.
PVC Pending: claim	warning	The PersistentVolumeClaim’s phase is Pending.
PVC Lost: claim	danger	The PersistentVolumeClaim’s phase is Lost.

A pod gets one alert however many rules it matches: a pending pod that also has back-off events is one problem, not two. A NotReady node that is also cordoned reads as NotReady.

The detail line names where the object is (namespace/name). A crash loop found from events also says how many back-offs its events counted and over how long: “in the last 10 min” when they all began inside that window, or the span since the first of them, such as “in the last 3d”, for a pod that has been backing off for longer. A pod crash loop found from its status gives its restart count, a failed Job gives its completions, and a claim gives its storage class.

How pod alerts avoid reading every pod

Pod alerts never read every pod, which on a busy cluster would be megabytes on every refresh:

A CrashLoopBackOff pod is phase Running, so the kubelet’s own Warning events are the cheap signal.

• Pending and failed pods come from status.phase field selectors, so the API server does the filtering and returns only the pods in question.

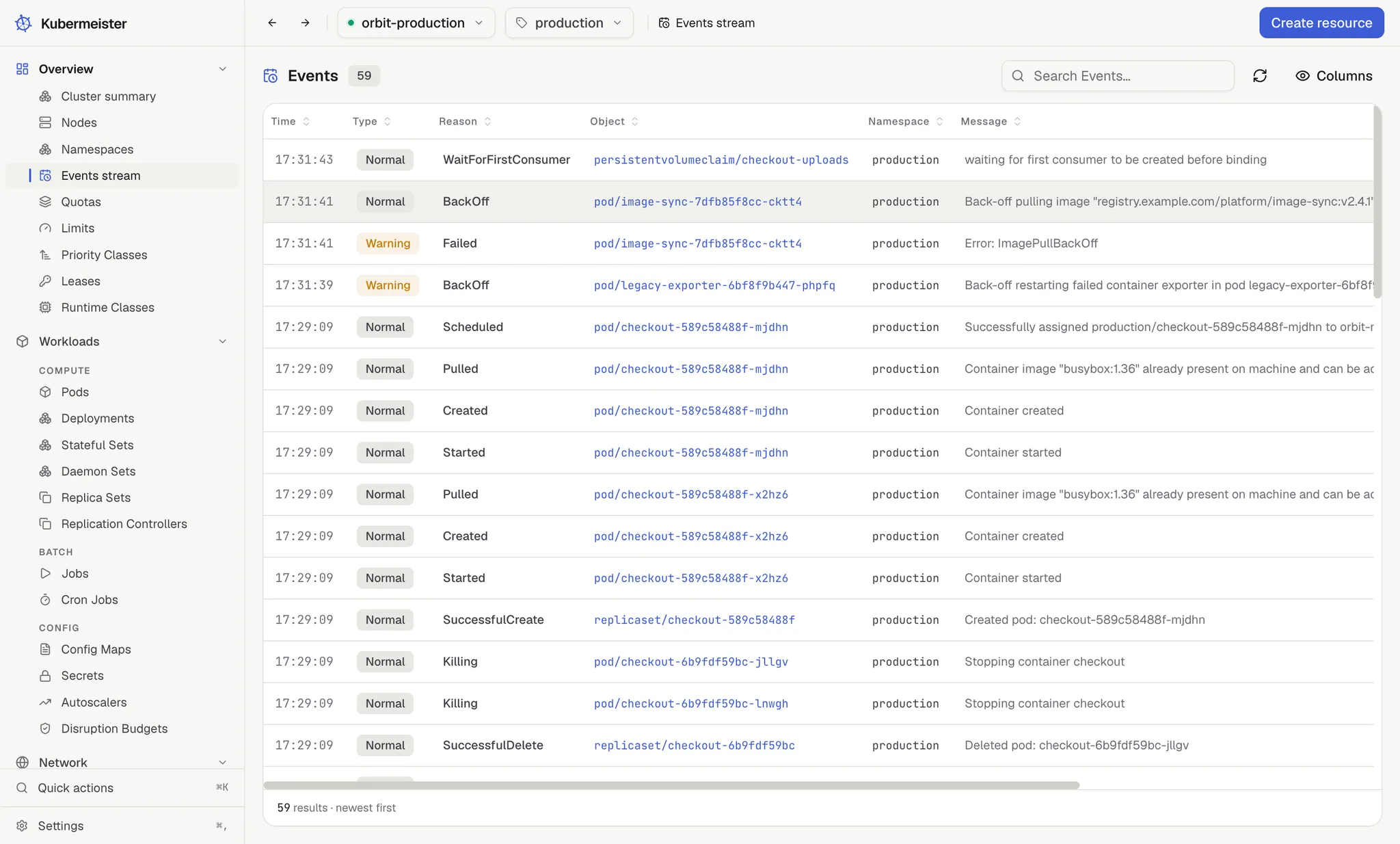

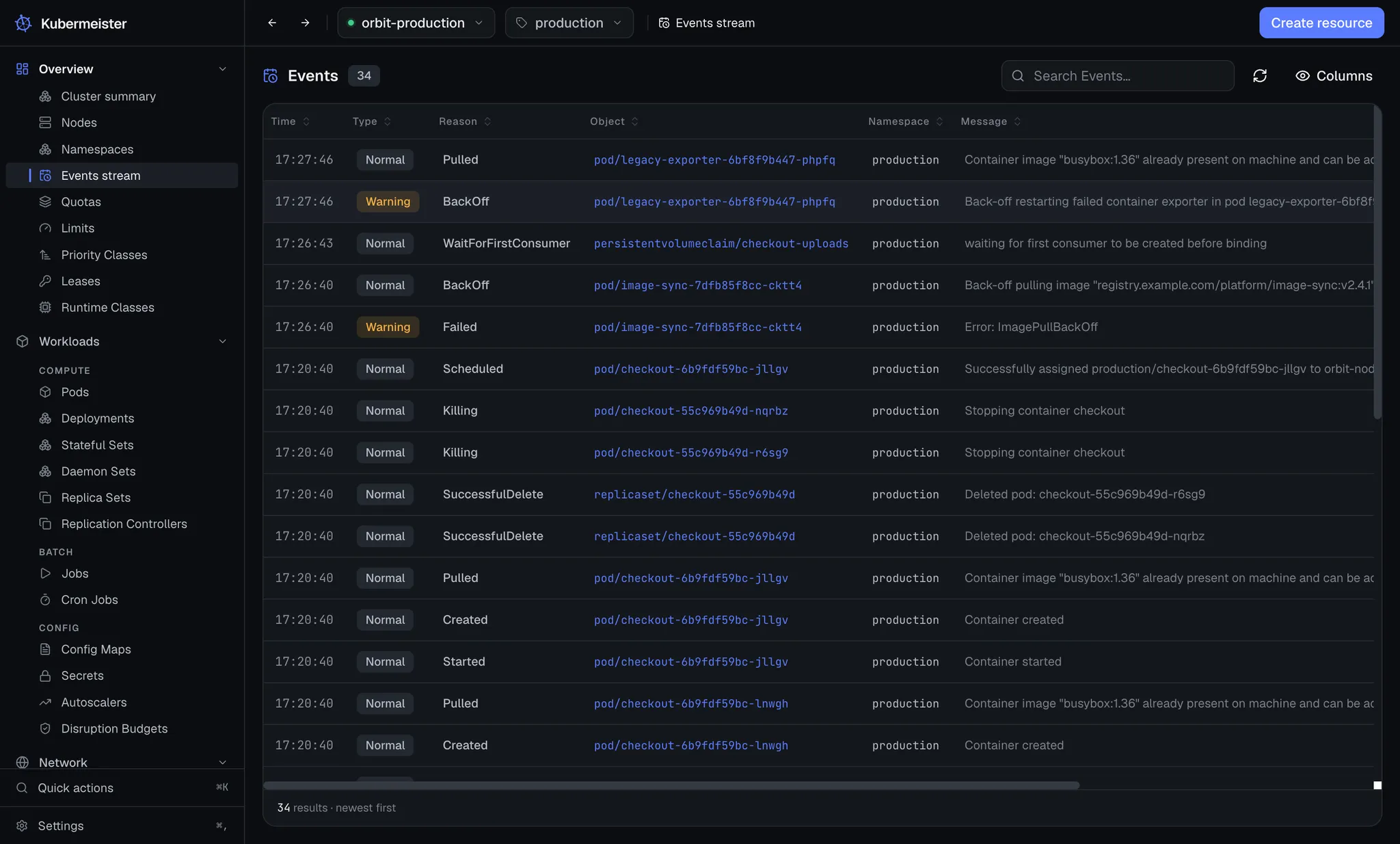

• Crash loops and image pull failures of running pods come from the Warning BackOff events the kubelet emits for them. Only events from the last 10 minutes count, since an older one describes a pod that has since settled or gone, and they are grouped per pod.

That second one is not an optimisation, it is a correctness point: a CrashLoopBackOff pod is phase Running, so no field selector finds it. The event is the only cheap signal.

Nodes, Jobs and PersistentVolumeClaims are small lists by comparison, so the app reads each of them in full, across all namespaces, on every refresh.

What is deliberately missing

There is no high-restarts alert, because healthy pods’ restart counts are never read. Adding one would mean listing every pod in the cluster on a timer, which is exactly what the rest of the app avoids.

There is also no alert for a Deployment or other workload with fewer available replicas than it wants. A rollout in trouble shows on the Deployment’s Status tab instead — see deployments and rollouts.
